Contour Tracking/Connecting

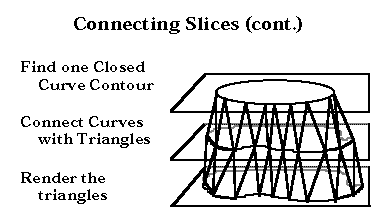

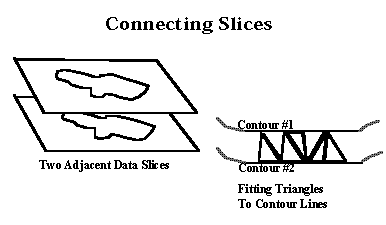

Contour Connecting is an object-ordered Surface Fitting method. Given a threshold value, a closed contour is traced for each data slice and then the contours in adjacent slices are connected and a tesselation, usually of triangles, is performed.

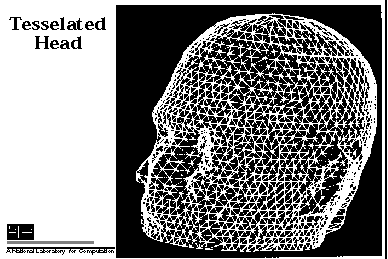

Here is an example of a contoured head that is then tesselated.

Contour Tracking Pioneers

• Keppel (1975) Find Path in Directed Graph Using Heuristics
• Fuchs (1977) Find Minimum Cost Path in Directed Toroidal Graph
  • Graph Theory Gives Solution Without Heuristics
  • Torso Case is Harder
• Ekoule, Peyrin, Odet (1991)
